At under 1300g, the 32 Step-Cast is a superlight MTB fork and made for marathon racing. This fork features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class. With a sleek reverse arch, this fork also gains 40% stiffness over its predecessor

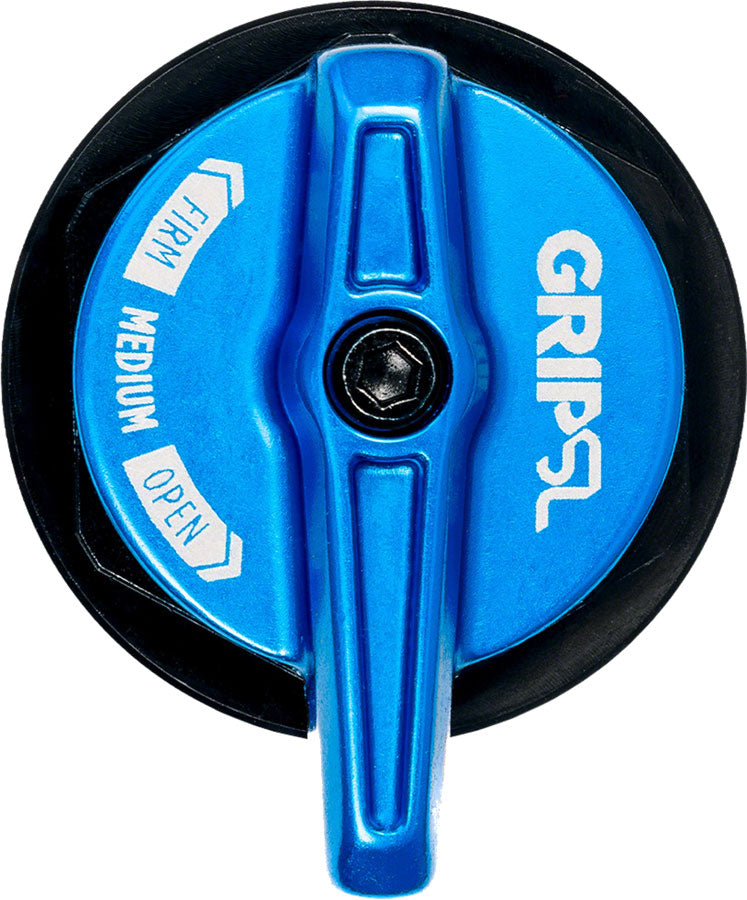

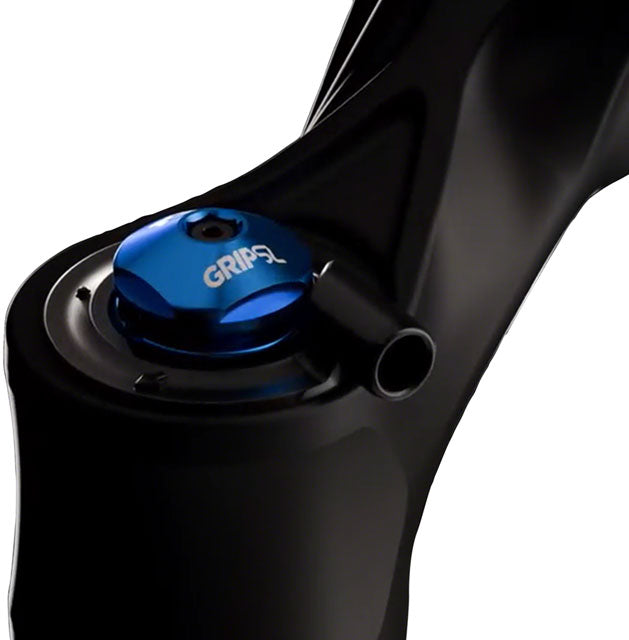

- Features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class
- Riders experience a supple stroke with an optimized pedal-to-bump efficiency, as well as a smooth blowoff force in lockout mode to reduce rider fatigue
- The rear arch matrix was generatively designed to increase stiffness by 40% while minimizing the weight penalty
- The premium 7000 Series aluminum, zero-offset crown supports angled upper tubes that not only contributes to the 32 Step-Cast's stiffness, but when combined with the ultra-light steerer tube, saves approximately 20g over the previous model
- Fitted with the proven and reliable FLOAT EVOL air spring
- Kabolt SL thru-axle drops an additional 12g over the standard Kabolt axle by eliminating the additional weight of the axle nut and decreasing the flange diameter
- Kashima Coating on upper tubes for added durability
-
Positive Spring: Air
-
Wheel Size: 29"
-
Brake Type: Post Mount 160
-
External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
-
Crown Race: 40
-
Negative Spring: Air
-
Stanchion Diameter: 32
-
Front Axle: 15mm Thru x 110mm
-
Steerer Type: Tapered
-
Offset: 44
-
Maximum Tire Width: 58
-
Steerer Tube Length (mm): 264
-
keyword search: FOX Model Year 26 , FOX MY26
-
Color: Shiny Black
-
S.H.I.S. Stem Clamp Diameter: 28.6
-
Travel (mm): 100
-
Axle to Crown Length: 503.7
-
Lockout Switch: Crown or Push-Lock
-
Defined Color: Black
